AdventOfCode 2024 Day 16

作者

— Day 16: Reindeer Maze —

Part One

走迷宫，从起点走到终点，找到最短的路径。只不过路径并不是常见的步数，而是尽量少的转弯

定位岔路口

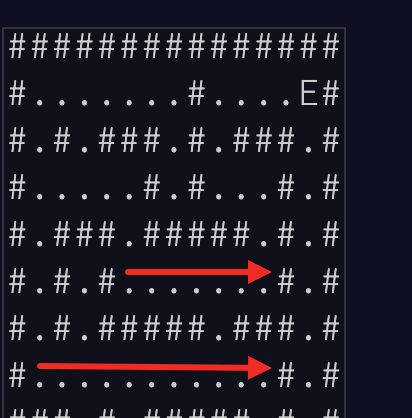

根据之前的经验，迷宫中很多步是可以一次走多步的，如下图所示。因此只要找出关键的岔路口，这样就可以大大减少计算量。

先根据一个函数，计算出每一行，每一列中，连续的可行进路段

CREATE OR REPLACE FUNCTION find_dot_ranges(input_str text)
RETURNS TABLE(start_pos int, end_pos int) AS $$
DECLARE
    i int := 1;
    n int := length(input_str);
    in_dot_sequence boolean := false;
    current_start int;
BEGIN
    WHILE i <= n LOOP
        -- 当遇到点且不在点序列中时，开始新的序列
        IF substring(input_str FROM i FOR 1) IN ('.', 'S', 'E') AND NOT in_dot_sequence THEN
            current_start := i;
            in_dot_sequence := true;
        -- 当遇到非点且正在点序列中时，结束当前序列
        ELSIF substring(input_str FROM i FOR 1) NOT IN ('.', 'S', 'E') AND in_dot_sequence THEN
            start_pos := current_start;
            end_pos := i - 1;
            RETURN NEXT;
            in_dot_sequence := false;
        END IF;

        i := i + 1;
    END LOOP;

    -- 处理字符串以点结尾的情况
    IF in_dot_sequence THEN
        start_pos := current_start;
        end_pos := n;
        RETURN NEXT;
    END IF;

    RETURN;
END;
$$ LANGUAGE plpgsql;

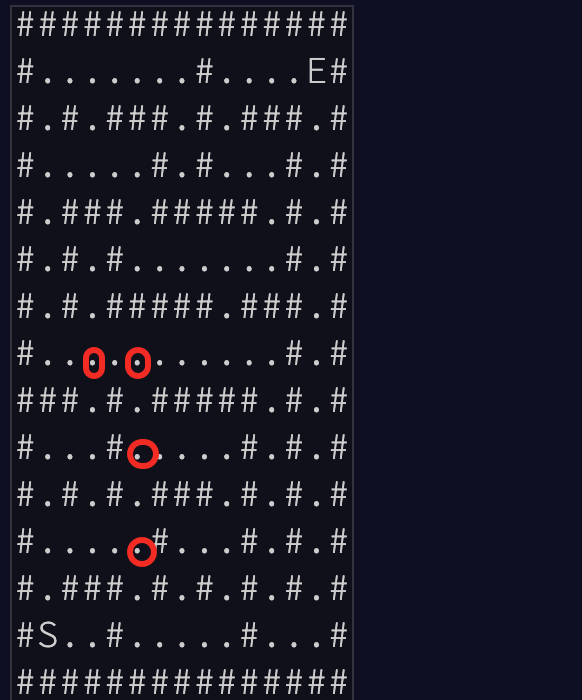

行列的可行进路段，会存在交叉点，这些也需要记录为岔路口，如下图所示

因此，通过一个函数，来将上一步计算出来的完整路程，根据行列交叉，分拆为多个路程。

CREATE OR REPLACE FUNCTION split_range(low int, high int, splits int[])
RETURNS TABLE(start_pos int, end_pos int) AS $$
DECLARE
    current_value int := low;
BEGIN
    IF splits is null THEN
        start_pos := low;
        end_pos := high;
        RETURN NEXT;
    ELSE
        FOR i IN 1..#splits LOOP
            IF splits[i] > current_value THEN
                start_pos := current_value;
                end_pos := splits[i];
                current_value = splits[i];
                RETURN NEXT;
            END IF;
        END LOOP;

        IF high > current_value THEN
            start_pos := current_value;
            end_pos := high;
            RETURN NEXT;
        END IF;
    END IF;
END;
$$ LANGUAGE plpgsql;

计算候选路程

有了上述两个函数之后，就可以计算出每个岔路口之间的路程，包括起点坐标、终点坐标、方向。

with recursive rows as (
    SELECT (row_number() over ()) :: INTEGER as _row, line
    FROM lance_input
), matrix AS (
    SELECT _row :: INTEGER, x.idx :: INTEGER as _col, x.pos
    FROM rows, regexp_split_to_table(line, '') with ordinality as x(pos, idx)
), cols AS (
    SELECT _col, string_agg(pos, '' order by _row) as line
    FROM matrix
    GROUP BY _col
), rows_range AS (
    SELECT _row, start_pos, end_pos
    FROM rows, find_dot_ranges(line) t
    WHERE t.start_pos < t.end_pos
), cols_range AS (
    SELECT _col, start_pos, end_pos
    FROM cols, find_dot_ranges(line) t
    WHERE t.start_pos < t.end_pos
), rows_new_range AS (
    SELECT t._row, s.start_pos as _col, s.end_pos as next_col
    FROM (
        SELECT a._row, a.start_pos, a.end_pos, b.pos_array
        FROM rows_range a
        LEFT JOIN (
            SELECT a._row, a.start_pos, a.end_pos, array_agg(b._col order by b._col) as pos_array
            FROM rows_range a
            JOIN cols_range b
            ON a._row between b.start_pos and b.end_pos
            AND b._col between a.start_pos and a.end_pos
            GROUP BY a._row, a.start_pos, a.end_pos
        ) b
        ON a._row = b._row
        AND a.start_pos = b.start_pos
        AND a.end_pos = b.end_pos
    ) t, split_range(start_pos, end_pos, pos_array) s
), cols_new_range AS (
    SELECT t._col, s.start_pos as _row, s.end_pos as next_row
    FROM (
        SELECT a._col, a.start_pos, a.end_pos, b.pos_array
        FROM cols_range a
        LEFT JOIN (
            SELECT b._col, b.start_pos, b.end_pos, array_agg(a._row order by a._row) as pos_array
            FROM rows_range a
            JOIN cols_range b
            ON a._row between b.start_pos and b.end_pos
            AND b._col between a.start_pos and a.end_pos
            GROUP BY b._col, b.start_pos, b.end_pos
        ) b
        ON a._col = b._col
        AND a.start_pos = b.start_pos
        AND a.end_pos = b.end_pos
    ) t, split_range(start_pos, end_pos, pos_array) s
), all_range AS (
    SELECT _row as start_row, _col as start_col, _row as end_row, next_col as end_col, 'E' as direction
    FROM rows_new_range

    UNION ALL

    SELECT _row as start_row, next_col as start_col, _row as end_row, _col as end_col, 'W' as direction
    FROM rows_new_range

    UNION ALL

    SELECT _row as start_row, _col as start_col, next_row as end_row, _col as end_col, 'S' as direction
    FROM cols_new_range

    UNION ALL

    SELECT next_row as start_row, _col as start_col, _row as end_row, _col as end_col, 'N' as direction
    FROM cols_new_range
)

寻找最优路径

接下来就比较简单了，从S出发，在候选路程中挑选未走过的路继续前进，直到找到终点。

walkthrough AS (
    SELECT _row, _col, 'E' as direction, 0 as steps, 0 as turns, array[_row * 10000 + _col] as path
    FROM matrix
    WHERE pos = 'S'

    UNION ALL

    SELECT *
    FROM (
        WITH walkthrough_inner as (select * From walkthrough)
        SELECT b.end_row as _row,
               b.end_col as _col,
               b.direction,
               a.steps + abs(b.end_row - b.start_row) + abs(b.end_col - b.start_col) as steps,
               case when a.direction != b.direction then turns + 1 else turns end as turns,
               path || (b.end_row * 10000 + b.end_col) as path
        FROM walkthrough_inner a
        JOIN all_range b
        ON a._row = b.start_row
        AND a._col = b.start_col
        AND NOT (b.end_row * 10000 + b.end_col) = ANY(a.path)
        WHERE NOT EXISTS (select * From walkthrough_inner where _row = 2 and _col = 16)
    ) t

)
SELECT * FROM walkthrough;

但是计算量比较大，性能上不太好，需要优化下。其实可以在每一步迭代的时候，在某一处坐标时，仅保留score最低的一个路径即可，其他可以忽略掉。

walkthrough AS (
    SELECT _row, _col, 'E' as direction, 0 as steps, 0 as turns, array[_row * 10000 + _col] as path
    FROM matrix
    WHERE pos = 'S'

    UNION ALL


    SELECT _row, _col, direction, steps, turns, path
    FROM (
        WITH walkthrough_inner as (
            SELECT _row, _col, direction, steps, turns, path
            FROM (
                SELECT *, row_number() over (partition by _row, _col, direction order by turns * 1000 + steps) as rn
                From walkthrough
            ) t
            WHERE rn = 1
        )
        SELECT b.end_row as _row,
               b.end_col as _col,
               b.direction,
               a.steps + abs(b.end_row - b.start_row) + abs(b.end_col - b.start_col) as steps,
               case when a.direction != b.direction then turns + 1 else turns end as turns,
               path || (b.end_row * 10000 + b.end_col) as path
        FROM walkthrough_inner a
        JOIN all_range b
        ON a._row = b.start_row
        AND a._col = b.start_col
        AND NOT (b.end_row * 10000 + b.end_col) = ANY(a.path)
        WHERE NOT EXISTS (select * From walkthrough_inner where _row = 2 and _col = 16)
    ) t
)
SELECT * FROM walkthrough;

Part Two

需要找出所有潜在最优路径路过的坐标之和

上一步使用row_number()，因此过滤掉了很多潜在的最优路径。这一步需要找出所有的最优路径，因此这里需要替换为rank()，保证最优路径不会被过滤掉。

但是注意到，最后的过滤条件有WHERE NOT EXISTS (select * From walkthrough_inner where _row = 2 and _col = 16)，也就是说，只要有路径达到了终点，那就立即终止搜索。这样做真的是正确的吗？

先达到就是最优吗？

因为我们的方法是每一次行走多步，先达到终点，并不意味着最终的score是最小的，score还要考虑转向的次数。通过计算，先达到终点的score是159524，而实际的最小score是143580。

postgres=# select turns * 1000 + steps from lance_test where _row = 2 and _col = 140;
 ?column?
----------
   159524
   159524
(2 rows)

postgres=# select turns * 1000 + steps from lance_test where _row = 2 and _col = 140 order by turns * 1000 + steps limit 2;
 ?column?
----------
   143580
   143580
(2 rows)

找到最优路径的集合

因此，先采用笨的方法，迭代一定次数后，基本上最优路径也就齐全了。

walkthrough AS (
    SELECT _row, _col, 'E' as direction, 0 as steps, 0 as turns, array[_row * 10000 + _col] as path
    FROM matrix
    WHERE pos = 'S'

    UNION ALL


    SELECT _row, _col, direction, steps, turns, path
    FROM (
        WITH walkthrough_inner as (
            SELECT _row, _col, direction, steps, turns, path
            FROM (
                SELECT *, row_number() over (partition by _row, _col, direction order by turns * 1000 + steps) as rn
                From walkthrough
            ) t
            WHERE rn = 1
        )
        SELECT b.end_row as _row,
               b.end_col as _col,
               b.direction,
               a.steps + abs(b.end_row - b.start_row) + abs(b.end_col - b.start_col) as steps,
               case when a.direction != b.direction then turns + 1 else turns end as turns,
               path || (b.end_row * 10000 + b.end_col) as path
        FROM walkthrough_inner a
        JOIN all_range b
        ON a._row = b.start_row
        AND a._col = b.start_col
        AND NOT (b.end_row * 10000 + b.end_col) = ANY(a.path)
    ) t
)
SELECT * FROM walkthrough limit 2000000;

通过下面的方法，将path分拆为一段段路径

postgres=# WITH example AS (  -- 示例数据（替换为实际表和列）
postgres(#     SELECT ARRAY[1, 2, 3, 4] AS arr
postgres(# )
postgres-# SELECT
postgres-#     arr[i] AS first,    -- 当前元素
postgres-#     arr[i + 1] AS next  -- 下一个元素
postgres-# FROM
postgres-#     example,
postgres-#     generate_series(  -- 生成索引序列
postgres(#         array_lower(arr, 1),  -- 数组起始索引（默认为 1）
postgres(#         array_upper(arr, 1) - 1  -- 最后一个有效索引（确保 i+1 不越界）
postgres(#     ) AS i;
 first | next
-------+------
     1 |    2
     2 |    3
     3 |    4
(3 rows)

最终，将path转换为许多段路径，去重之后，顶点数量+中间线段的数量，即是最终结果

WITH top_path AS (
    select path from (select rank() over (order by turns * 1000 + steps) as rn, path from lance_test where _row = 2 and _col = 140) t where rn = 1
), all_route AS (
    SELECT DISTINCT
        path[i] AS first,
        path[i + 1] AS next
    FROM
        top_path,
        generate_series(
            array_lower(path, 1),
            array_upper(path, 1) - 1
        ) AS i
), all_coordinates AS (
    SELECT first / 10000 as first_row,
           first % 10000 as first_col,
           next / 10000 as next_row,
           next % 10000 as next_col
    FROM all_route
)
SELECT sum(case when first_row = next_row then abs(first_col - next_col) - 1 else abs(first_row - next_row) - 1 end)
FROM all_coordinates

UNION ALL

SELECT COUNT(DISTINCT coordinate)
FROM (
    SELECT first as coordinate
    FROM all_route
    UNION ALL
    SELECT next as coordinate
    FROM all_route
) t
